Home > Products > Programming Adapter > TSOP48-0.5-12X18
TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173
  • TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173
  • TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173
  • TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173
  • TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173
  • TSOP48-0.5- Socket IC354-0482-031/035 Socket TSOP48-0.5-12X18 Socket High quality IC Test & burn-in adapter for TSOP48-0.5/ package 173

TSOP48-0.5-12X18
Test & burn-in adapter

SKU: ATP-TSOP48-0.5-12X18

Price & file please inquire
Instant response within 60 min.
Sale team:
Sales(@)allsocket.com

Socket life

  • Mechanical life/times: 20,000 cycles AllSOCKET
  • Mechanical life/times: Few similar products to compare

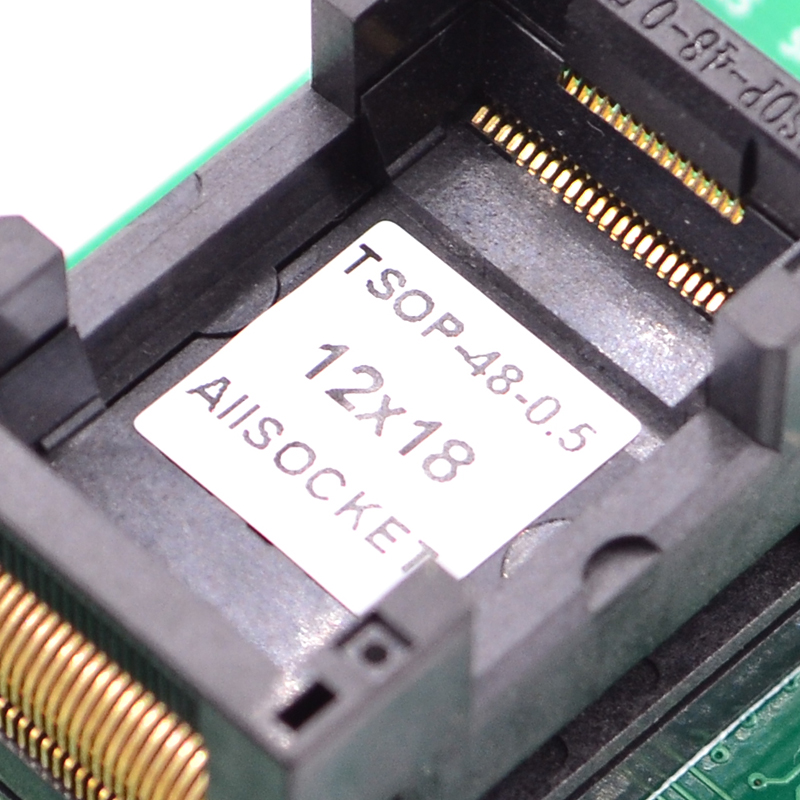

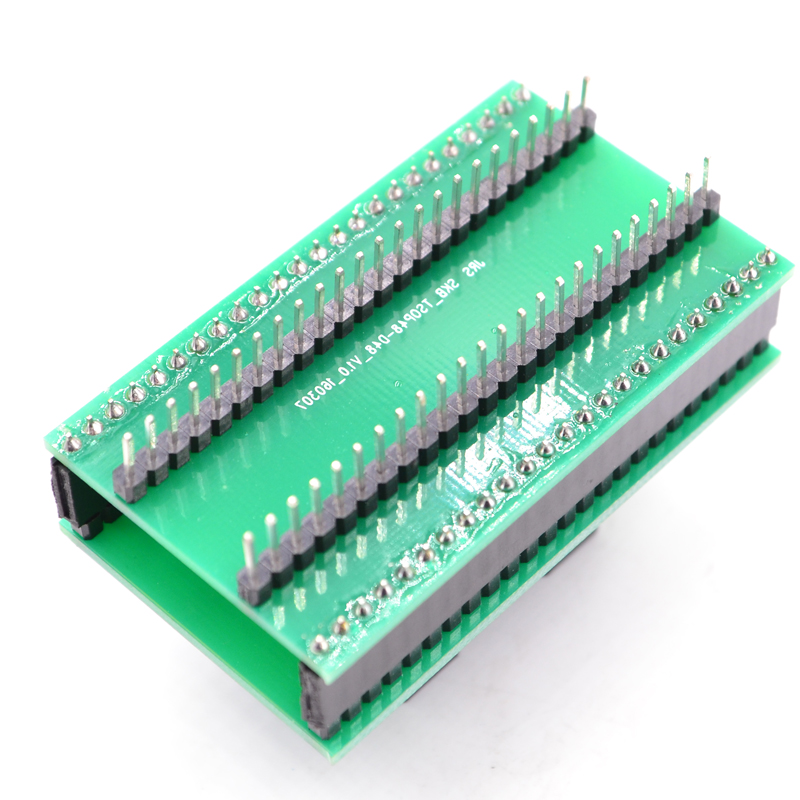

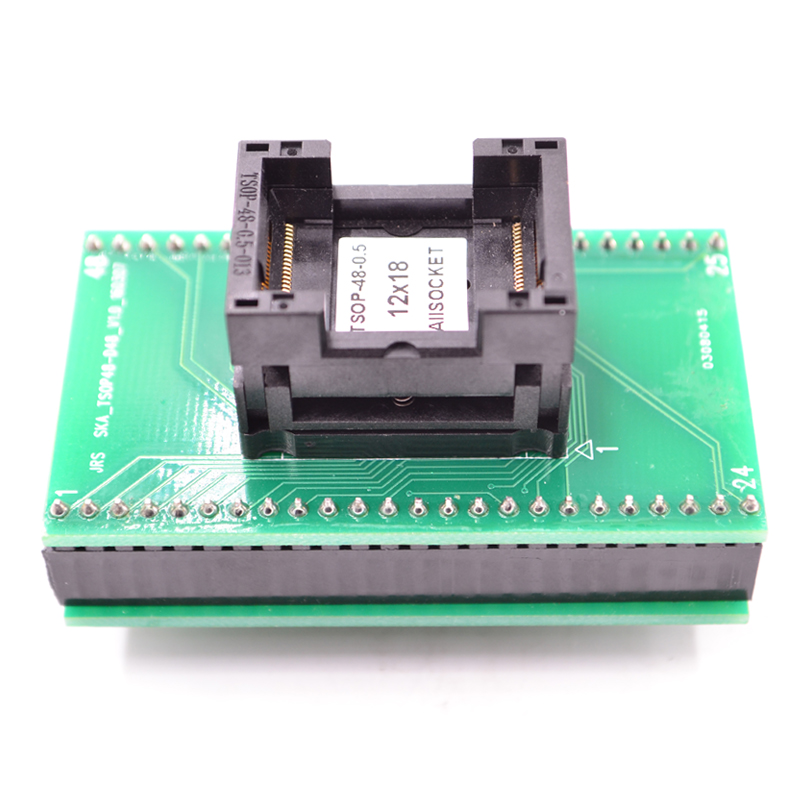

TSOP48-0.5-12X18-IC354-0482-031/035-Test & burn-in adapter
TSOP48-0.5-12X18
TSOP48-0.5-12X18-IC354-0482-031/035-Test & burn-in adapter
TSOP48-0.5-14X18
TSOP48-0.5-12X18-IC354-0482-031/035-Test & burn-in adapter
TSOP48-0.5-12X18
TSOP48-0.5-12X18-IC354-0482-031/035-Test & burn-in adapter
TSOP48-0.5-14X18

adapter Customizable Freq.Max Test Pitch Pins Op.Temp. Construction Installation Mechanical life
ATP-TSOP48-0.5-12X18 no FLASH 0.5 48 -55 ~ +175 Open Top Plug 20,000 cycles

Supported Package

  • TSOP48-0.5
  • Socket life

    • Mechanical life/times: 20,000 cycles AllSOCKET
    • Mechanical life/times: Few similar products to compare

    Material & Specifics:

  • Structure: Open Top
  • Socket Body: PEI
  • Contacts: Beryllium Copper Alloy
  • Contact Plating: Gold over nickel
  • Operation Force: Max 2.0kg
  • Contact Resistance: Max 50 mohm
  • Insulation Resistance: 1,000 mohm min. at DC 500V
  • Dielectric withstanding voltage For 1 Minute at AC 700V
  • Current: Max 1A
  • Operation Temperature: -55 ~ +175 Celsius degree
  • Operation Life: 20,000 cycles(Mechanical)
  • Use method:

  • Assemble to be an adapter
  • Assemble onto a test board
  • Assemble and make a test jig
  • TSOP48-0.5-12X18adapter TSOP48-0.5-12X18adapter TSOP48-0.5-12X18adapter TSOP48-0.5-12X18adapter TSOP48-0.5-12X18adapter

    Video:

    TSOP48-0.5-12X18, TSOP48-0.5,

    Datasheet:

    • Sorry, this datasheet is unavailable now. Please contact sales, thank you.

    DWG DXF 3D:

    • DWG is unavailable now. Please contact sales, thank you.
    • DXF is unavailable now. Please contact sales, thank you.
    • STP is unavailable now. Please contact sales, thank you.
